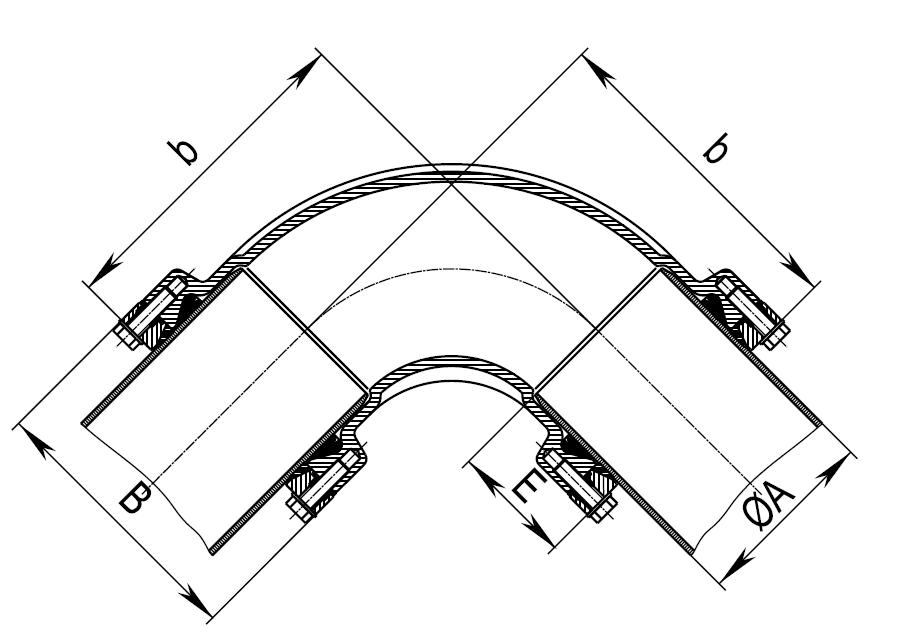

Отводы №8535 (90°), №8545 (45°), №8555 (30°), №8557 (11°)
| Диаметр трубы А | b | Е | В | Вес | ||||||
| 90° | 45° | 30° | 11° | 90° | 45° | 30° | 11° | |||
| 63 | 153 | 112 | 80 | 124 | 4,2 | 4,7 | ||||
| 75 | 170 | 120 | 82 | 138 | 5,5 | 5,0 | ||||
| 90 | 188 | 129 | 115 | 98 | 85 | 152 | 7,6 | 6,4 | 5,8 | 5,7 |
| 110 | 213 | 140 | 122 | 100 | 85 | 172 | 10,0 | 7,9 | 7,2 | 6,6 |
| 125 | 240 | 153 | 87 | 193 | 9,8 | 9,9 | ||||
| 140 | 246 | 159 | 93 | 210 | 15,0 | 13,1 | ||||
| 160 | 283 | 181 | 155 | 105 | 236 | 19,5 | 16,0 | 15,0 | ||
| 180 | 293 | 191 | 113 | 258 | 26,0 | 21,0 | ||||
| 200 | 353 | 221 | 125 | 284 | 37,5 | 30,0 | ||||
| 225 | 355 | 224 | 128 | 314 | 43,0 | 38,0 | ||||
| 250 | 427 | 263 | 145 | 347 | 57,0 | 47,0 | ||||
| 280 | 430 | 266 | 148 | 376 | 69,0 | 55,0 | ||||
| 315 | 506 | 313 | 174 | 422 | 100,0 | 80,0 | ||||
* Может использоваться на сетях водоотведения
